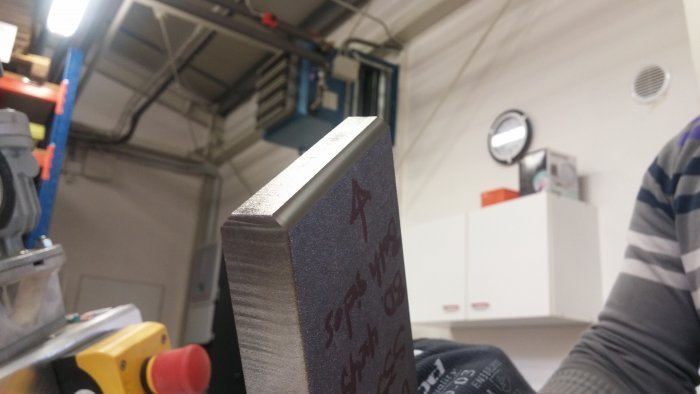

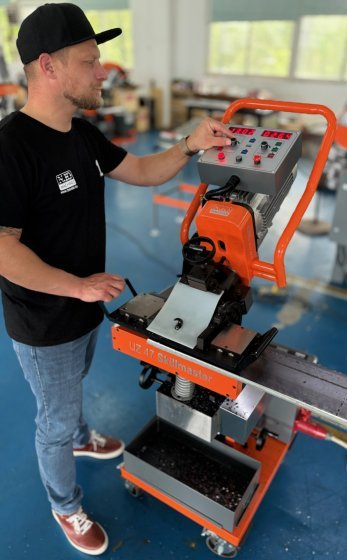

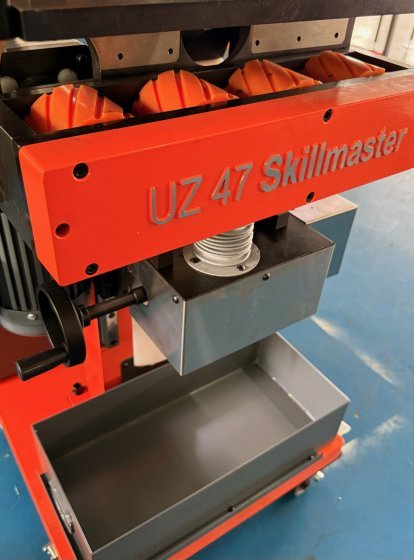

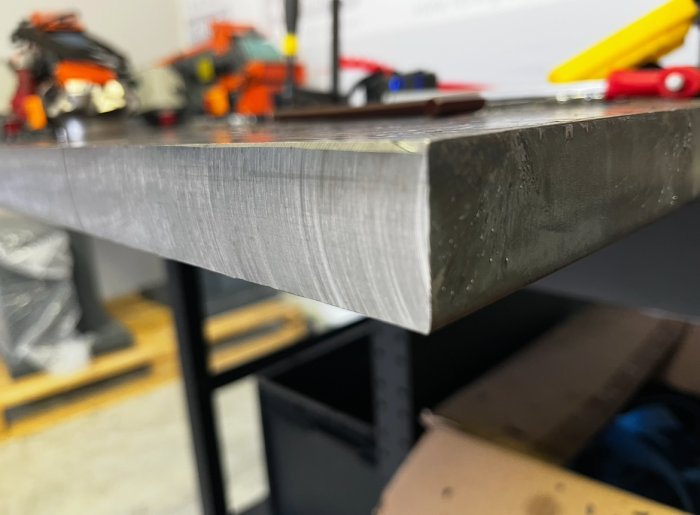

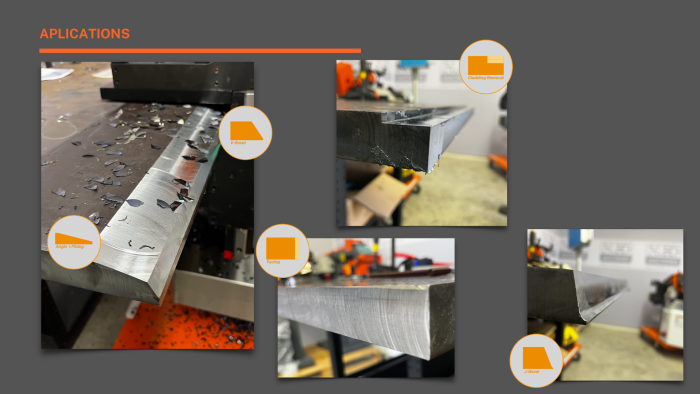

Unique multi-purpose bevelling machine with automatic feed for applications such as V-bevel, J-bevel, Cladding Removal, Facing and +70° chamfers.
Suitable for machining structural steels including higher strength steels, stainless steels and other harder to machine materials such as Hardox or Domex.
Suitable for machining structural steels including higher strength steels, stainless steels and other harder to machine materials such as Hardox or Domex.

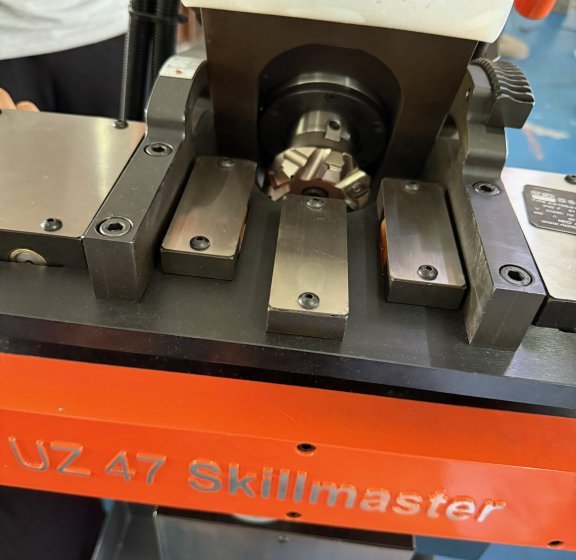

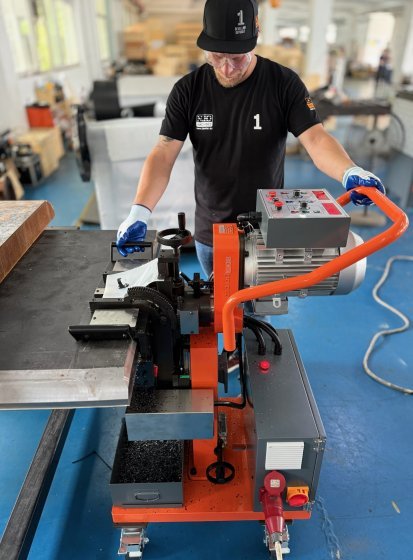

- Automatic workpiece clamping system.
- Infinitely adjustable tool speed.
- Infinitely variable machine feed speed.

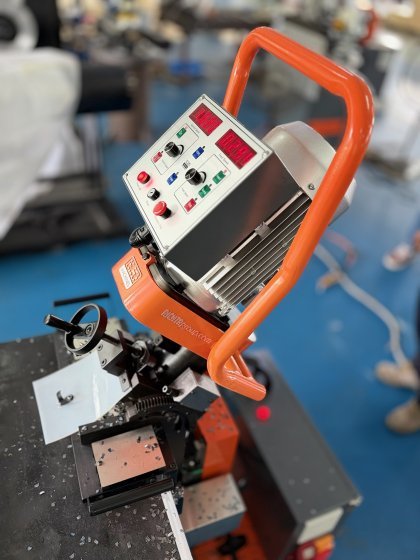

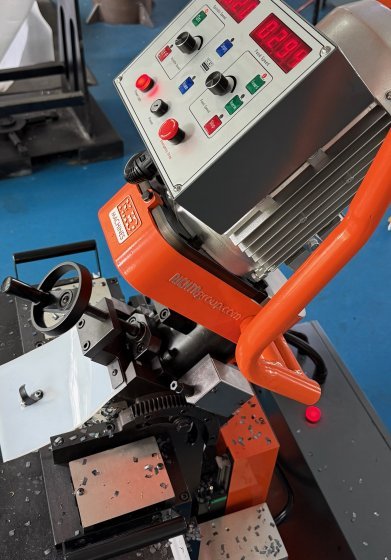

- 2 built-in displays showing cutting conditions.
- Possibility of adjusting the height of the machining unit according to the position of the workpiece.
- Tool adjustment in three axes. Unique cross feed.

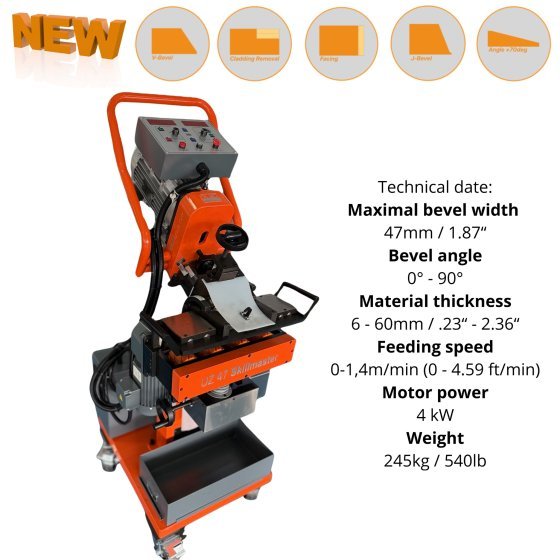

Technical date:
| Maximal bevel width | 47mm / 1.87“ |
| Bevel angle | 0° – 90° |
| Material thickness | 6 – 60mm / .23“ – 2.36“ |
| Feeding speed | 0-1,4m/min (0 – 4.59 ft/min) |
| Motor power | 4 kW |
| Voltage | 400V / 50Hz. (220V /60Hz, 480V / 60Hz) |
| Weight | 245kg / 540lb |
| Machine name: | 400V, 50Hz | 480V, 60Hz | 220V, 60Hz. |

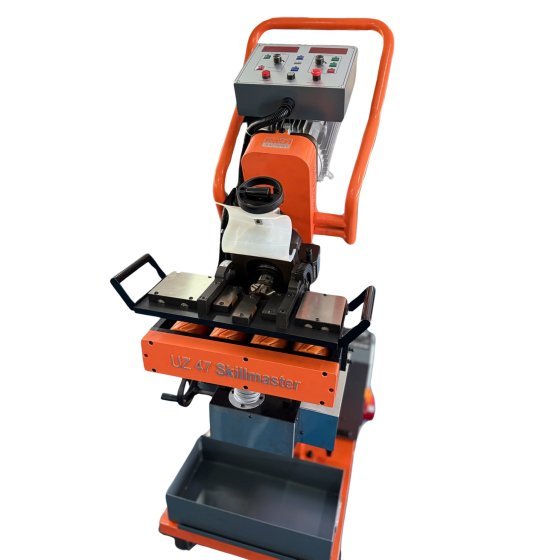

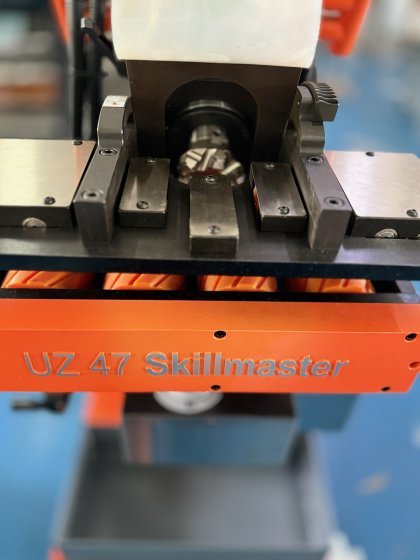

| UZ47 Skillmaster | 4700 | 4702 | 4701 |
| Recommended accessories | Art.Nr. |
| Milling head for Bevelling and Facing application | 4705 |
| Square Cutting inserts for bevelling and facing – ECO | 1944 |
| Square Cutting inserts for bevelling and facing – Premium | 1950 |
| Milling head for Cladding Removal application | 4706 |
| Rectangular Cutting inserts for Cladding Removal, ECO | 1007 |

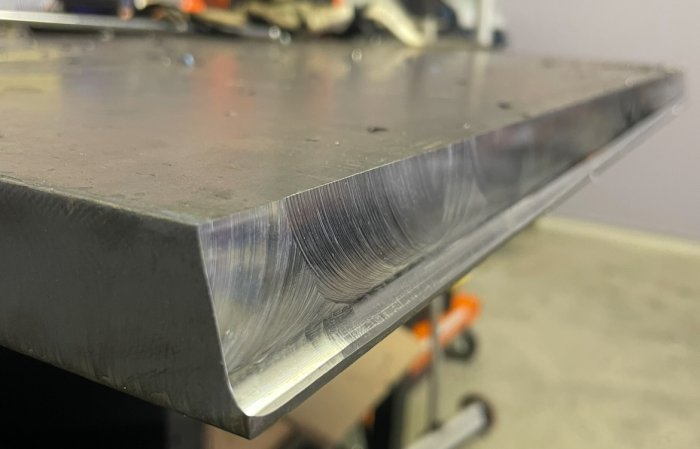

| Milling head for J-Bevel application, R6mm | 4708 |
| Round Cutting inserts for J-Bevel, R6mm, ECO | 1009 |
| Milling head for J-Bevel application, R8mm | 4710 |
| Round Cutting inserts for J-Bevel, R8mm, ECO | 1011 |
| Bevelling Solver | 1900 |
