Pipe edge bevelling tool TWISTER
For machining tubes Ø 19.5 – 70 mm (0.76“ – 2.75“)

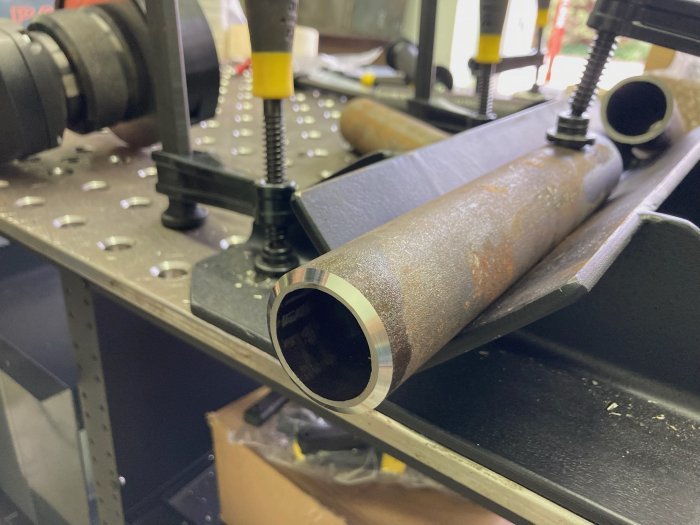

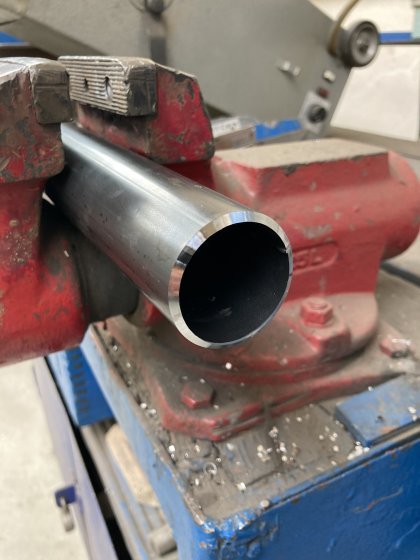

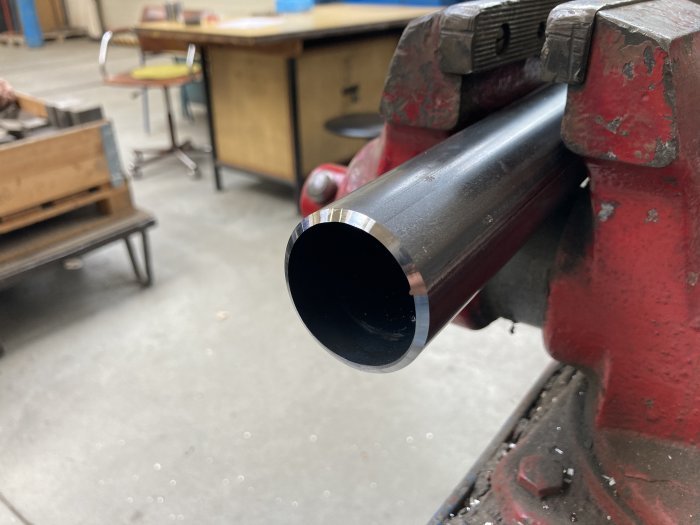

The Twister tool is designed for machining pipe ends to prepare weld surfaces or deburring the pipe.

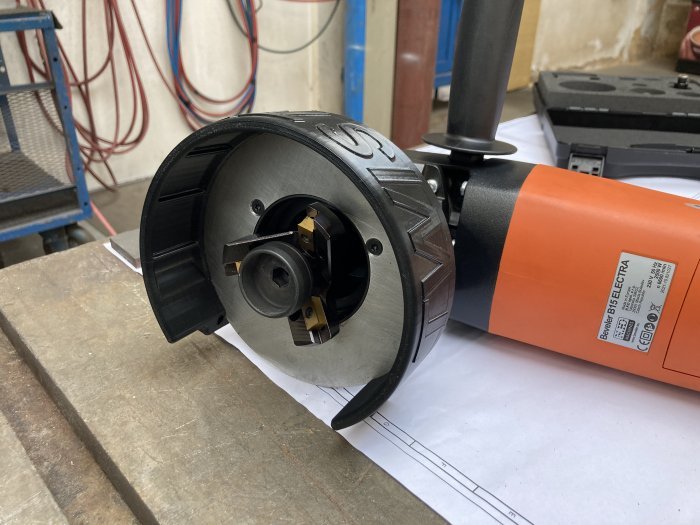

Milling head is designed for use with N.KO Machines B15 Electra and B15 AIR machines. Alternatively B10 Electra.
The Twister tool has been developed for machining iron, carbon structural steel, non-ferrous metals and plastics.

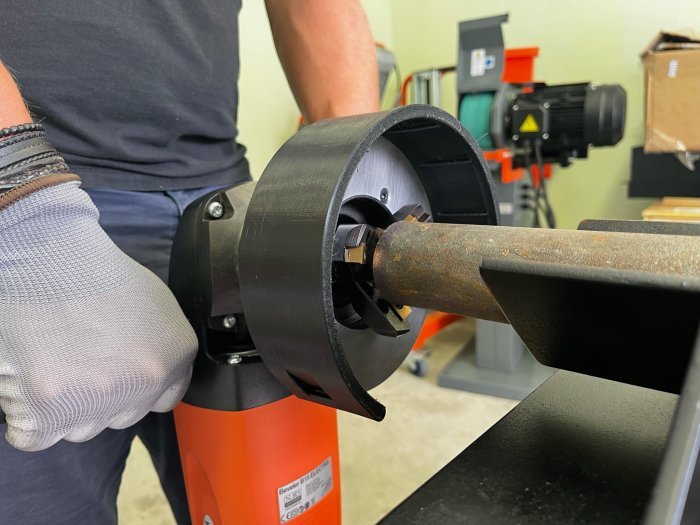

The Twister must be used only with the safety cover. The safety cover is not included in the price. The safety cover art. nr.: 27409
Twister 2-3000
- Bevel angle: 30°
- Min. diameter of machined pipe: 19.5 mm (0.76“)
- Max. diameter of machined pipe: 70 mm (2.75“)
- Max. bevel width: 10 mm (0.39“)
- Number of cutting inserts: 3 pcs

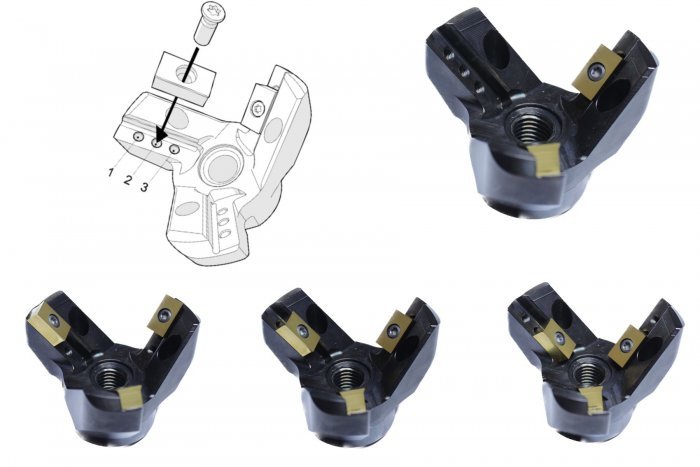

- Number of mounting positions for cutting inserts: 3
- Tool weight (fully assembled, including guide mandrel): approx. 450 g (0.99 lb)
Twister 2-3705
- Bevel angle: 37.5°
- Min. diameter of machined pipe: 19.5 mm (0.76“)
- Max. diameter of machined pipe: 66 mm (2.59“)
- Max. bevel width: 10 mm (0.39“)
- Number of cutting inserts: 3 pcs
- Number of mounting positions for cutting inserts: 3
- Tool weight (fully assembled, including guide mandrel): approx. 450 g (0.99 lb)
Twister 2-4500
- Bevel angle: 45°
- Min. diameter of machined pipe: 19.5 mm (0.76“)
- Max. diameter of machined pipe: 60 mm (2.36“)
- Max. bevel width: 10 mm (0.39“)
- Number of cutting inserts: 3 pcs
- Number of mounting positions for cutting inserts: 3
- Tool weight (fully assembled, including guide mandrel): approx. 450 g (0.99 lb)
Included in the price:

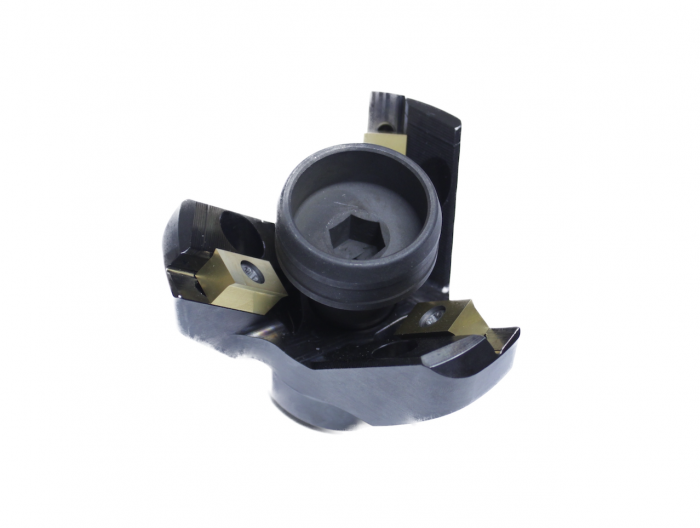

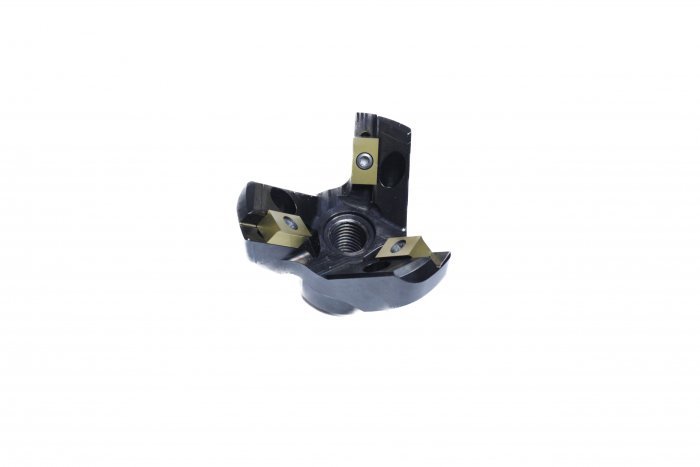

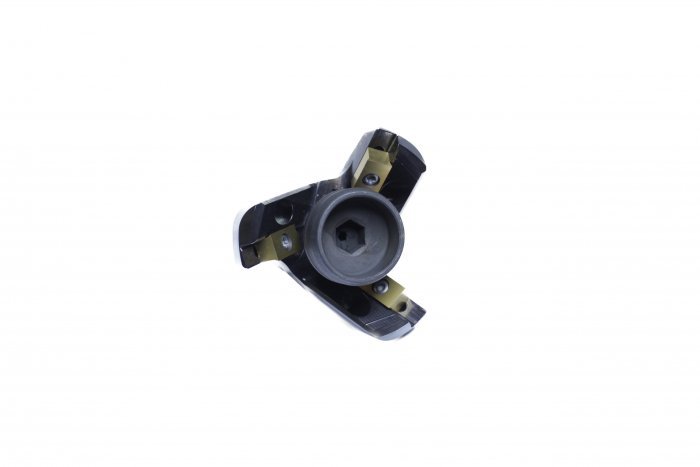

- Milling head Twister fitted with cutting inserts
- Set of guide mandrel – 19 mm (0.74″), 24 mm (0.94″), 32 mm (1.25″), 38 mm (1.49″), 49 mm (1.92″)
- Tools for an operator
| Art.Nr. | |
| Twister 2-3000 (30°) | 27200 |
| Twister 2-3705 (37,5°) | 27201 |
| Twister 2-4500 (45°) | 27202 |
| Accessories: | Art.Nr. |
| Coated cutting inserts two sided – set of 10pcs | 28015 |
| Fastening screw for the cutting inserts (1 pc) | 28007 |

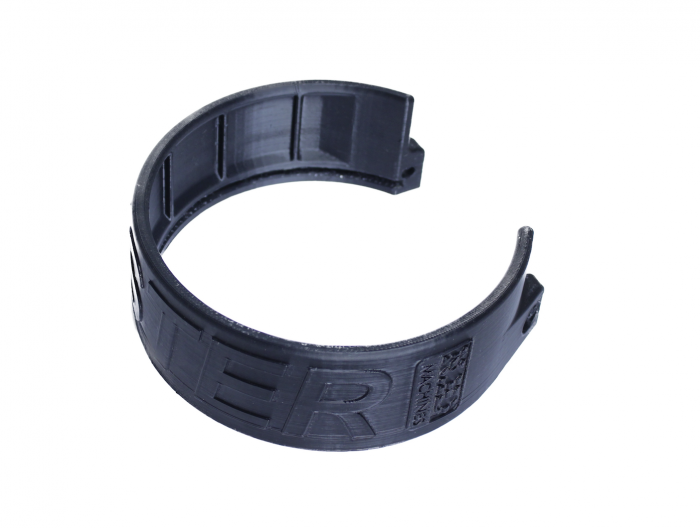

| Safety cover | 27409 |

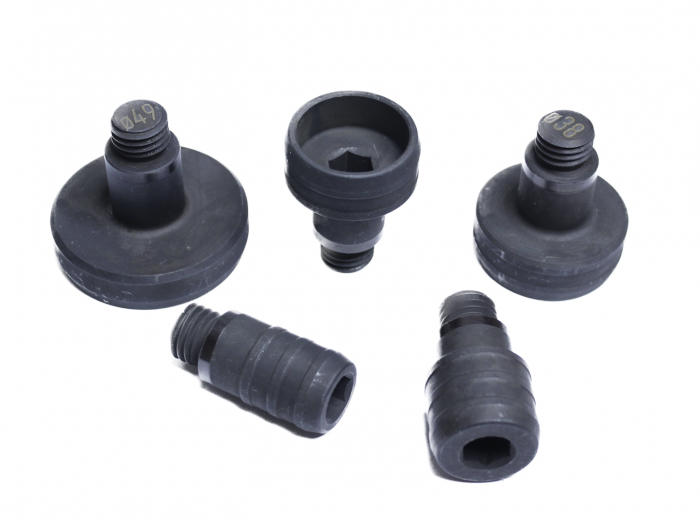

| Centering mandrel 19 mm (0.74″) | 27403 |
| Centering mandrel 24 mm (0.94″) | 27404 |
| Centering mandrel 32 mm (1.25″) | 27405 |
| Centering mandrel 38 mm (1.49″) | 27406 |
| Centering mandrel 49 mm (1.92″) | 27407 |
| Customized centering mandrel | 274XXX |
| Allen key for mounting the centering mandrel | 27408 |
| Universal tube key for milling head’s removing | 25300_27 |
| Wrench with flag handle for mounting cutting inserts | TORX_T15 |
| Special lubricating paste for the milling heads 120g / 0.27 lb – prevents seizing up, wear, cold-welding, solidifying of the threads | 33005 |
| Magnetic Swarf Remover – mag brush is extremely light-weight and is optimal for removing metal chips | 18654 |
| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in | NMF0107 |
