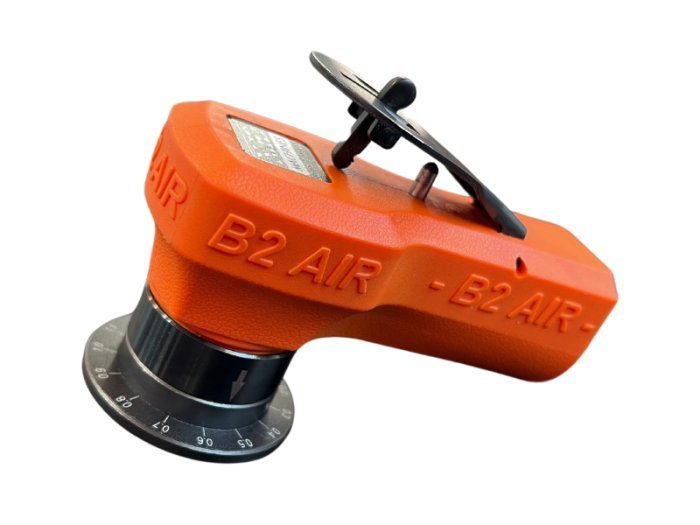

Deburring system B2 AIR
Pneumatic drive.
(Max. width of bevel 2 mm / 0.08 in.)
Designed for deburring and rounding edges of steel, stainless steel, aluminum and other workpieces.
Suitable for machining holes from the internal diameter of 7 mm / 0.27 in.
- Compact design, great ergonomics.
- Weight only 400 g / 0.88 lb.
- Edge machining by rounding R 1.5 mm / R 0.06 in – edge preparation before painting.
- Powerful and reliable pneumatic drive.
- Precision machining scale allows for more precise machining.
- Packed in a cardboard box.
Technical data:
- Max. bevel width: 2 mm / 0.08 in as a maximum
- Bevel angle: 45°
- Rounding radius: R 1,5 mm / R 0.06 in
- Speed: 23.000 rpm.
- Feeding: manual
- Air consumption: 320 l/min.
- Weight: 400 g / 0.88 lb
- Dimensions: 112 x 60 x 48 mm / 4.4 x 2.36 x 1.9 in
- Number of cutting inserts: 3 pcs
Included it the price:
- B2 AIR deburring system – fitted with head with cutting inserts.
- Tools for an operator
- User manual
| Art.Nr. | |
| Deburring system B2 AIR – fitted with head with cutting inserts | 24220 |
| Accessories: | Art.Nr. |
| Cutting inserts radius R 1.5 mm / R 0.06 in – three-sided – pack of 10 pcs | 24202 |
| PREMIUM Coated cutting inserts – three-sided – pack of 10 pcs | 24204 |
| Pneumatic set with quick couplings – contains: FRL – filtration, regulator and lubrication unit, quick couplings, hoses 10 m / 394 in | 24203 |
| Screw for the inserts | 7252F-04 |
| Magnetic Swarf Remover Mag Brush – for collecting all magnetic materials – lenght of a magnetic bar 180 mm / 7.1 in | 18654 |
| Magnetic Sweeper Mag Brush Maxx Large – equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in | NMF0107 |
