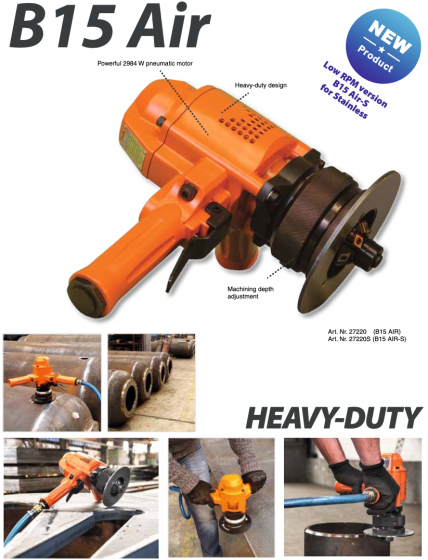

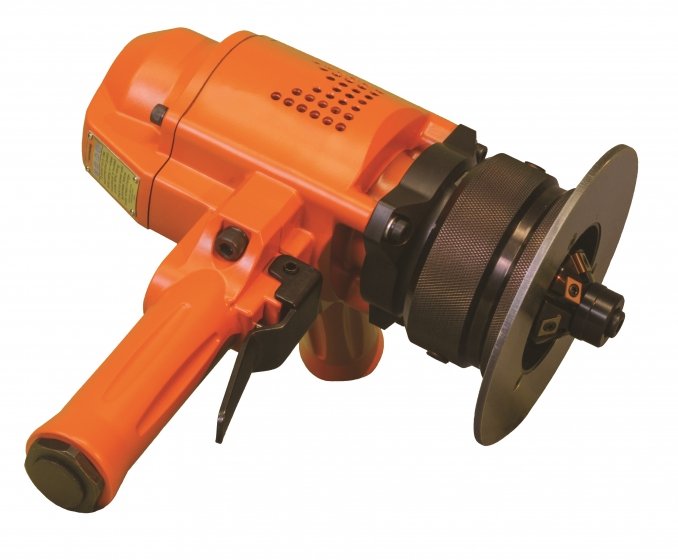

BEVELER B15 AIR (max. width of bevel 15 mm)
Pneumatic Hand Beveler with huge power for straight edges, contours, boreholes, radius. The beveler is designed and produced by NKO MACHINES and brings a new high ergonomics design and huge power for every day beveling. Aluminum alloy body engine, Hardox support plate, milling head and inserts designed especially for hand beveler.
- Ergonomic two-handed operation
- Huge power for all applications
- Straight edges, contours, boreholes
- Excellent price
- 30°, 45°, 50°, 60°other on demand
- Made in Czech Republic by NKO MACHINES
Technical description:
- The beveler B15 AIR is a heavy-duty hand held pneumatic beveler which uses 6 indexable carbide inserts. The design allows straight edges, contours and contours to be beveled with ease, suitable also for radius.
- High performance pneumatic motor offers huge power for all applications
- Works with steel, stainless steel, aluminium, copper, plastic and other materials.
- The precision dial scale allows precise adjustment of the chamfer height.
- Replacable the tool holder for angle 30°, 37,5; 45°, 50°, 60°other angles on demand.
Technical data:
- Power: 2 984W
- Air pressure/consumtion: max 6 bar/750 l/min
- No load: rpm.6000 (B15 AIR-S 4200 rpm)
- Bevel width:
0 to 15mm < 400 N/mm2
0 to 8mm > 400 N/mm2 - Net weight: 7,5kg approx
- Bevel angle: optional 30°, 37,5°, 45°, 50°,60°, other angles on demand
- Radius: 2,5; 4 mm
Included in the price:
- Beveler B15 AIR
- Needed tools for operation
- 1 operation manual
- WITHOUT HEAD! Select the desired head angle
| Machine name: | Art. Nr. |
| Bevelling and deburring system B15 AIR (without the milling head) | 27220 |
| Bevelling and deburring system B15 AIR-S – low RPM version for stainless steel (without the milling head) | 27220S |
| SET Bevelling and deburring system B15 AIR + Xpipe Beveler (without the milling head) | 27225 |
| SET Bevelling and deburring system B15 AIR-S – low RPM version for stainless steel + Xpipe Beveler (without the milling head) | 27225S |
| Accessories – PREMIUM milling heads: | Art.Nr. |
| 30° milling head PREMIUM – the cutting inserts and the lead roller Ø 30 mm / 1.19“are included | 27223X |
| 37,5° milling head PREMIUM – the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included | 27227X |
| 45° milling head PREMIUM – the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included | 27222X |
| 50° milling head PREMIUM – the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included | 27224X |
| 60° milling head PREMIUM – the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included | 27240X |
| The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ – diameter Ø 33,5 mm / 1.32“ | 28004 |
| The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“ | 28013 |
| The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ – diameter Ø 31 mm / 1.23“ | 28005 |
| The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“ | 28014 |
| The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ – diameter Ø 25,5 mm / 1.01“ | 28006 |
| The spare two sided cutting inserts 15 mm / 0.6“ – two-sided, coated – pack of 10 pcs – only for premium milling heads | 28015 |
| The shorter four sided cutting inserts 8 mm / 0.3“ – four-sided, coated – pack of 10 pcs – only for premium milling heads with additional special roller | 28008 |
| The fastening screws for cutting inserts (works with both cutting inserts versions) – only for premium milling heads | 28007 |
| Accessories – Edge cleaner – grinding adapter: | Art.Nr. |
| Edge Cleaner – grinding adapter – including 10 pcs grinding rings grain 40, 1 pc guiding roller | 25310 |
| Grinding rings grain 40 for Edge Cleaner – pack of 50 pcs | 25312 |
| Spare polyurethane guiding roller for Edge Cleaner | 25311 |
| Accessories – The Rounding milling heads: | Art.Nr. |
| Complete radius milling head R2,5 mm / 0.08“ – including of the guiding roll and fastening screw, the cutting inserts are included – the lead roller diameter Ø 30 mm / 1.19“ | 27234 |
| Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“ – including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included – the lead roller diameter Ø 39,5 mm / 1.55“ | 27233 |
| Cutting inserts for rounding edges R2,5 mm / 0.08“ – four-sided – pack of 10 pcs | 26109 |
| Coated cutting inserts for rounding edges R3,5 mm / 0.12“ – four-sided – pack of 10 pcs | 26110 |
| Coated cutting inserts for rounding edges R4 mm / 0.16“ – four-sided – pack of 10 pcs | 26111 |
| The fastening screws for cutting inserts – only for rounding milling heads | 27242 |
| Accessories – The older ECO milling heads. Available while supplied last. | Art.Nr. |
| 30° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 34 mm / 1.34“ | 27223 |
| 37,5° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 28 mm / 1.10“ | 27227 |
| 45° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 28 mm / 1.10“ | 27222 |
| 50° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 28 mm / 1.10“ | 27224 |
| 60° cutting head – including inserts, screws, bolts and roller – guide roller diameter Ø 27 mm / 1.06“ | 27240 |
| Cutting head with non-standard angle – including inserts, screws, bolts and roller | 27XXX |
| Screw for the cutting inserts – only for ECO milling heads | 27241 |
| Accessories – others: | Art.Nr. |
| Pneumatic set with quick couplings (contains: FRL – filtration, regulator and lubrication unit, quick couplings, hoses 10 m) | 27221 |
| Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“ (beveler B10 Electra / B15 Electra / B15 AIR is not included) | 25500 |
| Special lubricating paste for the milling heads 120g – prevents seizing up, wear, cold-welding, solidifying of the threads | 33005 |
| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in | NMF0107 |
| Mag Brush – collects all magnetic | 18654 |
